ADTECHNO - HDMI to Dante AV Ultra Encoder
Model Number: DAV-01HT
Brand: ADTECHNO
Regular price
$2,895.48
$2,895.48
$3,185.03 (Inc GST)
Sale
PRODUCT DESCRIPTION
Converts an HDMI source into a Dante AV Ultra stream for distribution over a managed Gigabit Ethernet network. The Colibri codec delivers visually lossless video up to 4K60 4:4:4 with subframe latency, making it suitable for presentation systems, control rooms and live AV distribution. An HDMI loop output supports local monitoring. A 2-inch IPS screen provides video preview, audio meters and configuration access, while a headphone output supports local audio checks.
The Dante environment allows audio, video and supported control signals to be routed independently, helping integrators distribute a programme to the required endpoints without duplicating the physical source. Matching Colibri-based Dante AV Ultra endpoints are required for video interoperability.
Local preview and audio monitoring help technicians check signals during commissioning and operation. The front-panel rotary control provides access to Dante settings such as sampling rate and latency. This combination suits installed AV and production environments where signal visibility at the device is useful.
KEY FEATURES
• Up to 4K60 video using the Colibri codec
• Gigabit Ethernet AV distribution
• 2-inch IPS preview, audio meters and front-panel settings
• 6.3mm headphone monitoring
• USB HID/KVM, IR and RS-422 control interfaces
• PoE+ or optional 12V AC-DC adapter
CONNECTIVITY AND INSTALLATION

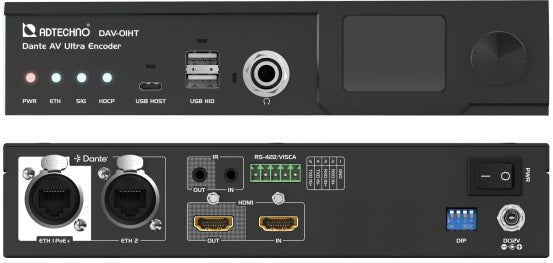

HDMI input and HDMI loop output; two 1GbE Neutrik etherCON ports, with PoE+ on port 1; USB-C host and two USB-A HID connections; RS-422 and IR interfaces.
Dimensions (W x D x H), excluding protrusions, and weight: 210 x 127 x 44mm; approximately 1,500g.
Operating temperature: 0–40°C.
Compatible optional rack accessory: DAV-01RU1, 1U shelf for one device.
HDMI VIDEO INPUT FORMATS
Resolution | Frame/field frequency (Hz)
4096 x 2160p | 23.976/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
3840 x 2160 | 23.976/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
2560 x 1600 | 60
2048 x 1080p | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1920 x 1200p | 60
1920 x 1080p | 23.976/ 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1600 x 1200 | 60
1280 x 1024 | 60
1280 x 720p | 25/ 29.97/ 30/ 50/ 59.94/ 60
1080i | 50/ 59.94/ 60
1024 x 768 | 60
576p | 50
FORMAT LIMITATIONS AND NETWORK REQUIREMENTS
• YCbCr 4:2:0 is not supported.
• 4K is supported in 8-bit only.
• 576p is displayed in a 4:3 aspect ratio.
• Use a compatible Colibri-based Dante AV Ultra decoder for video transport.
• Use a managed 1GbE network configured for multicast, IGMP snooping/querier and QoS.
• Supported output formats also depend on the source signal and connected display or SDM host.
POWER AND OPTIONAL ADAPTER
Power options: IEEE 802.3at PoE+ or 12V DC. No separate AC-DC adapter is required when powered by a suitably rated PoE+ switch or injector.
Maximum power consumption: 20W, including USB HID load.
The AC-DC adapter is optional and sold separately.
Compatible adapter model: PSU1235SC.
Adapter input: 100–240V AC, 50/60Hz, 1.2A.
Adapter output: +12V DC, 3.5A (42W rated output).
Connector: screw-locking DC connector.
Cable lengths: 1.5m DC lead; 1.8m AC side including power cord.
Converts an HDMI source into a Dante AV Ultra stream for distribution over a managed Gigabit Ethernet network. The Colibri codec delivers visually lossless video up to 4K60 4:4:4 with subframe latency, making it suitable for presentation systems, control rooms and live AV distribution. An HDMI loop output supports local monitoring. A 2-inch IPS screen provides video preview, audio meters and configuration access, while a headphone output supports local audio checks.
The Dante environment allows audio, video and supported control signals to be routed independently, helping integrators distribute a programme to the required endpoints without duplicating the physical source. Matching Colibri-based Dante AV Ultra endpoints are required for video interoperability.
Local preview and audio monitoring help technicians check signals during commissioning and operation. The front-panel rotary control provides access to Dante settings such as sampling rate and latency. This combination suits installed AV and production environments where signal visibility at the device is useful.
KEY FEATURES
• Up to 4K60 video using the Colibri codec
• Gigabit Ethernet AV distribution
• 2-inch IPS preview, audio meters and front-panel settings
• 6.3mm headphone monitoring
• USB HID/KVM, IR and RS-422 control interfaces
• PoE+ or optional 12V AC-DC adapter
CONNECTIVITY AND INSTALLATION
HDMI input and HDMI loop output; two 1GbE Neutrik etherCON ports, with PoE+ on port 1; USB-C host and two USB-A HID connections; RS-422 and IR interfaces.
Dimensions (W x D x H), excluding protrusions, and weight: 210 x 127 x 44mm; approximately 1,500g.
Operating temperature: 0–40°C.
Compatible optional rack accessory: DAV-01RU1, 1U shelf for one device.
HDMI VIDEO INPUT FORMATS
Resolution | Frame/field frequency (Hz)
4096 x 2160p | 23.976/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
3840 x 2160 | 23.976/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
2560 x 1600 | 60
2048 x 1080p | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1920 x 1200p | 60
1920 x 1080p | 23.976/ 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1600 x 1200 | 60
1280 x 1024 | 60
1280 x 720p | 25/ 29.97/ 30/ 50/ 59.94/ 60
1080i | 50/ 59.94/ 60
1024 x 768 | 60
576p | 50
FORMAT LIMITATIONS AND NETWORK REQUIREMENTS
• YCbCr 4:2:0 is not supported.
• 4K is supported in 8-bit only.
• 576p is displayed in a 4:3 aspect ratio.
• Use a compatible Colibri-based Dante AV Ultra decoder for video transport.
• Use a managed 1GbE network configured for multicast, IGMP snooping/querier and QoS.
• Supported output formats also depend on the source signal and connected display or SDM host.
POWER AND OPTIONAL ADAPTER
Power options: IEEE 802.3at PoE+ or 12V DC. No separate AC-DC adapter is required when powered by a suitably rated PoE+ switch or injector.
Maximum power consumption: 20W, including USB HID load.
The AC-DC adapter is optional and sold separately.
Compatible adapter model: PSU1235SC.
Adapter input: 100–240V AC, 50/60Hz, 1.2A.
Adapter output: +12V DC, 3.5A (42W rated output).
Connector: screw-locking DC connector.
Cable lengths: 1.5m DC lead; 1.8m AC side including power cord.
Stock: Call for ETA
