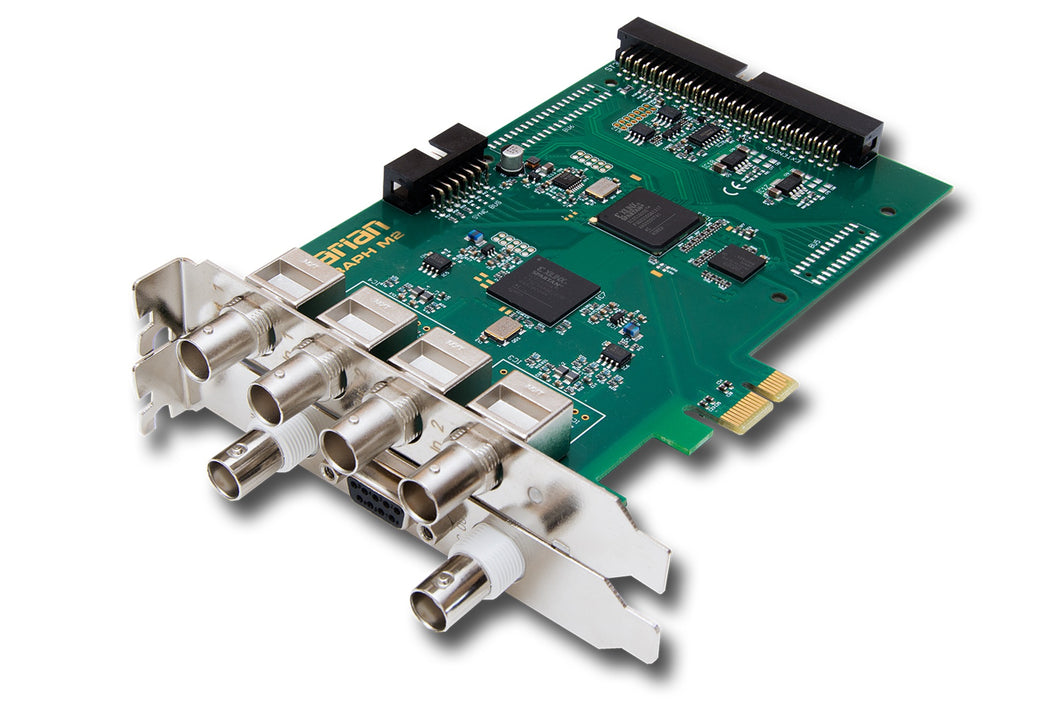

SERAPH M2 MWX - 128 x Madi I/O PCIe card, Midi I/O, 24 bit 384KHz, BNC connectors
Model Number: SERAPH M2 MWX
Brand: Marian
Regular price
$1,970.93
$1,970.93
$2,168.02 (Inc GST)
Sale
Up to 256 channels, integrated clock synchronisation, stable connections over long distances, sample rates of up to 384 kHz, lowest transmission latencies – all these advantages are now available with the Seraph M2 at an amazingly low price. In addition, the Seraph M2 is available in two versions: with optical SC connectors (M2-F) or coaxial BNC connectors (M2).
Compatible to all MADI Formats up to 384 kHz
Both versions of the Seraph M2 have two MADI inputs and outputs, realising a different number of transmission channels depending on the sample rate. 224 or 256 channels are possible at up to 48 kHz, depending on the connected device. By default, each doubling of the sample rate results in a halving of the channels. At 384 kHz, this ensures the transmission of 32 high-quality audio signals.
Advanced synchronisation capabilities and MIDI via MADI
With the optional MWX Extender the Seraph M2 and M2-F are extended by a word clock output. This allows the synchronisation of external digital devices by the sound system independent of the MADI connections. In addition, the MWX Extender has two MIDI inputs and outputs. Finally, MIDI signals can be embedded into the MADI signal via a DAW and thus be transmitted over long distances.
Real-time routing and signal control in hardware
A comfortable user interface is available for convenient latency-free routing of up to 128 input signals to different outputs as well as for adjusting their respective volume. It is part of a comprehensive driver suite optimised for Windows systems and minimal latencies in any ASIO DAW.
Compatible to all MADI Formats up to 384 kHz
Both versions of the Seraph M2 have two MADI inputs and outputs, realising a different number of transmission channels depending on the sample rate. 224 or 256 channels are possible at up to 48 kHz, depending on the connected device. By default, each doubling of the sample rate results in a halving of the channels. At 384 kHz, this ensures the transmission of 32 high-quality audio signals.
Advanced synchronisation capabilities and MIDI via MADI
With the optional MWX Extender the Seraph M2 and M2-F are extended by a word clock output. This allows the synchronisation of external digital devices by the sound system independent of the MADI connections. In addition, the MWX Extender has two MIDI inputs and outputs. Finally, MIDI signals can be embedded into the MADI signal via a DAW and thus be transmitted over long distances.
Real-time routing and signal control in hardware
A comfortable user interface is available for convenient latency-free routing of up to 128 input signals to different outputs as well as for adjusting their respective volume. It is part of a comprehensive driver suite optimised for Windows systems and minimal latencies in any ASIO DAW.
Stock: Call for ETA
Category: Broadcast Audio
